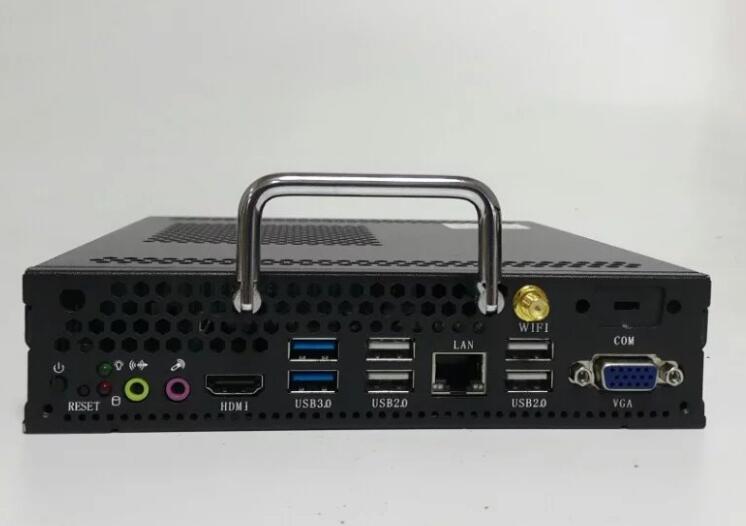

interactive flat Panel OPS PC H61 I3-3210

Processor

Intel Core i3-3210 (Dual core/ Four Threads/3.2GHz/3MB L3

/HD2500/22nm/54W/LGA1155)

Chipset

Intel® H61

BIOS

AMI 32Mbit

RAM 4GB SO-DIMM DDR3 1333 MHz memory , Max.8GB

ROM SATA Port 2.5〞5400rpm 500G

MINI PCIE 1xMini PCIE

Display Chipset CPU HD Graphics

Output VGA+HDMI, single Display/ Dual Display

1 × VGA (resolution 1920×1080 maximum)

1 ×HDMI (resolution 3840x2160 maximum)

NET Chipset 1 × RTL8111E 10/100/1000M (RJ45 LAN)

WIFI 1 x WIFI Module support 802.11b/g/n (Mini PCIE half card)

I/O PUT

USB 3.0 2x USB 3.0

USB 2.0 4x USB 2.0

COM 1XCOM(RS232)

Power Button 1x Power Button

Reset 1x Reset Button

OPS Port 1x OPS port (80 pins)

LED indicator 1x power LED, 1x RAM LED

DC Jack 1x DC jack

Audio 1 × LINE-OUT & MIC-IN, integrated 6 channels ALC662 audio card chip

POWER Input DC 12-19V

Power Consumption 90W

SIZE physical Size 180mm (L) x 195mm (W) x 42mm (H)

Working environment

Temperature Working:0°C ~50°C storage: -20~70°C

Humidity 5%~90%

Operation System

Version Windows xp/Windows 7 / windows8 / Windows 10/Linux
