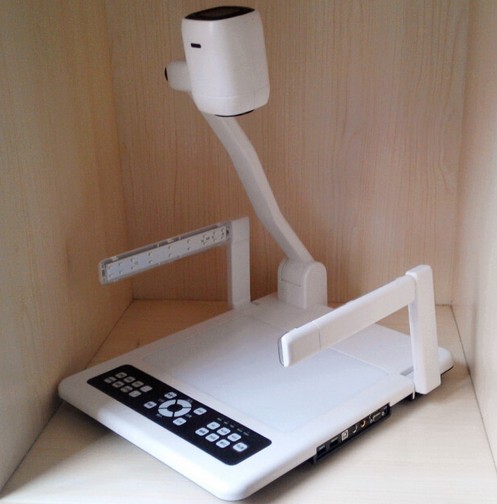

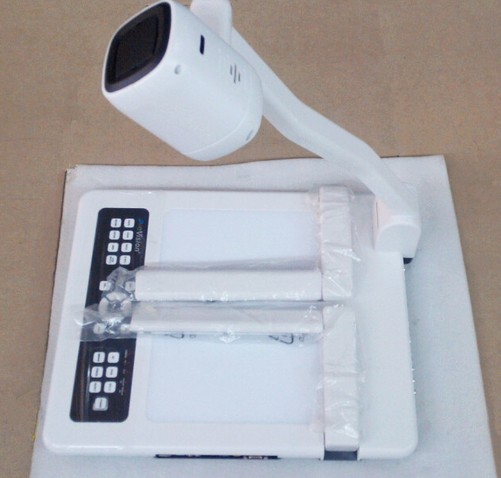

Document camera
Lens F=1.4-2.6;f=3.9-62.4mm
Shooting Area Max: 260 × 210 mm
Zoom 16X Optical ,10X Digital zoom
Focus Auto/manual
Optical system
Exposure Auto/manual
Image sensor 1/3" CMOS SENSOR
Total pixels 3.2Mega pixels
Horizontal Resolution850TVLine
Frame rate 25 fps(max) XGA、720P、SXGA、1080P
S/N 50DB or more
White Balance Auto/manual
H： （48.4/60±0.25）KHZ
Image system
VGA OUTPUT
V:（60/75±0.2）HZ
TV system PAL
Composite Video 1V ± 0.2Vp-p 75Ω Video system
Audio -10dB 10KΩ or more
Top Lamp 1W × 2 ,LED
Light system
Base Lamp 1W × 1 ,LED
Video Extern Video and Audio
Signal Choice
VGA Local/Extern VGA1/Extern VGA 2
VGA D-SUB 15 Socket×2
Composite Video RCA Socket×1
Audio RCA Socket × 1,￠3.5㎜ Stereo Socket×2
MIC ￠6.35 Socket × 1 ( -60dB 600Ω)
Input Port
RS-232 D-SUB 9 Socket×1
VGA D-SUB 15 Socket× 2
Composite Video RCA Socket × 1
S-Video Mini DIN 4 jack × 1
Audio ￠3.5㎜ Stereo Socket×1
Output Port
USB USB2.0× 1
Image Memory Built-in Flash Memory (max:32)
Image effect Color /B/W/Negative/Mirror/Reverse/Freeze
Controlling method Control panel, remote control,RS232
Power supply DC12V,2A
Power consumption ≤40W
Operating
conditions
Temperature 0 ℃～ 40℃
Setup： 450X370X500mm
Dimension WX DXH

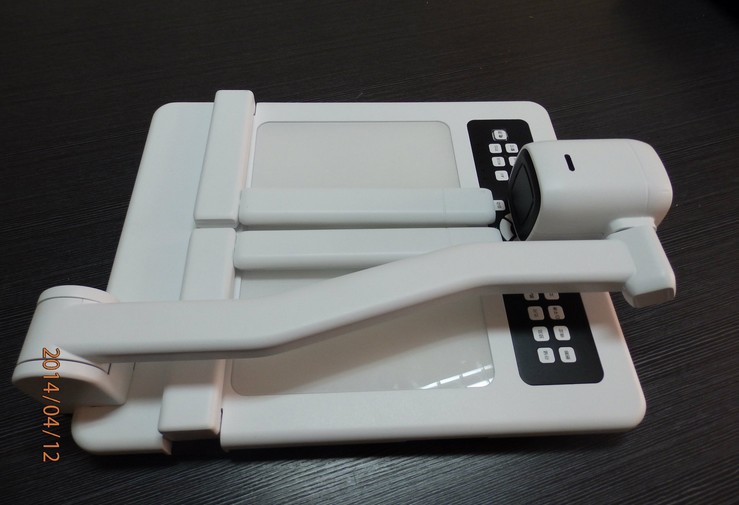

Folded： 482X370X114mm
