Name

OPC PC

Size

194.6*203.8*41.8 mm

Material

SECC, Black color

Chipset

H81

CPU

Intel 4th i3 G3250

Memory

Standard 4GB DDR3,maximum up to 12G DDR3

Graphics card

Integrated card HD 4400 Graphics

Sound

Integrated Realtek ALC662 HD

Wifi

Yes

Expansion Slot

Support OPS extension by Intel OPS Interface Specifications

1*MINI-PCIE socket(Support wifi/3G module)

1*MINI-SATA socket(Support SSD/HDD)

Storage

HDD 2.5″SATA HDD  500GB standard

SSD Optional

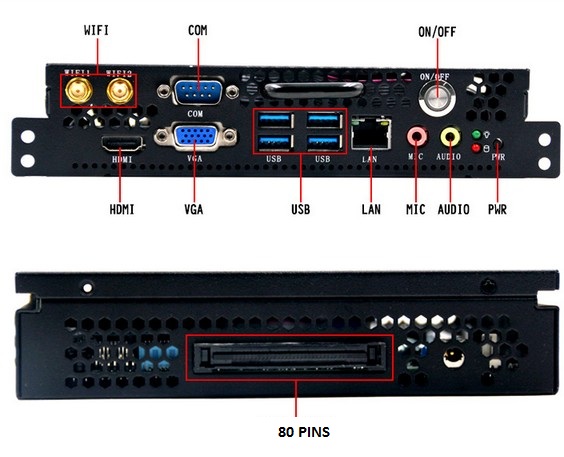

Back I/O Interfaces

Display Output

HDMI,VGA

Network Output

1*Realtek 81111 EL(Gigabit Ethernet)

COM

1*RS232

USB

4*USB3.0

Audio Interface

1*MIC-IN  1*LINE-OUT

Switch and Lamp

1*Switch Button,1*Power&HDD LED

OPS card I/O

Display Output

HDMI,DP

USB

3*2.0

Power

1*DC-JACK

Audio

1*LINE-OUT

Switch

1*Switch Button

Power, System and Environment Specification

Power Supply

12V-19V DC(Support Hardware,Automatic startup function support Power On)

System

Windows7,windows 8,windows8.1,windows10,linux (testing version, license should be bought by customer themselves)

WorkingEnvironment

-10~60℃

Power Supply

12V-19V DC (Support Hardware,Automatic startup function support Power On )
