Intercam portable document camera is a very applicable model. And it is very easy to operate. With high costs and performance ratio. Good quality CMOS with high definition. USB port to supply power, plug and use. It can open and fold with small size putting into pockets. Lens can be adjusted up and down. It can shoot 3D pictures or files. Internet Fax no need the fax machine. It is an ideal model for the schools, government, banks and offices daily work.

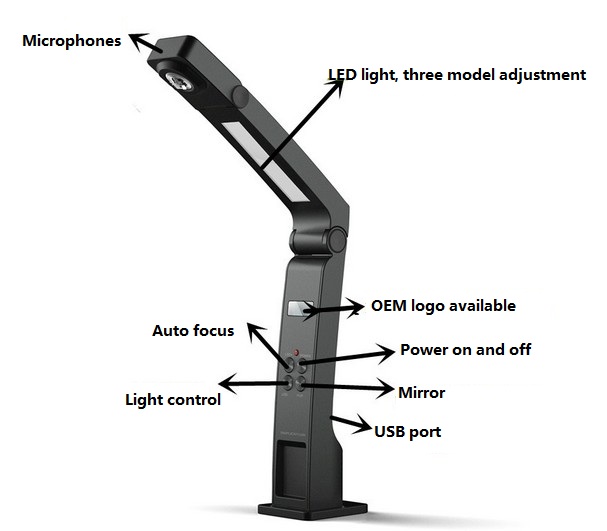

Selling Points

1. Fordable design. Front cover two parts. Front parts can adjust up and down. Also horizontal adjustment is applicable. 120°maximum.

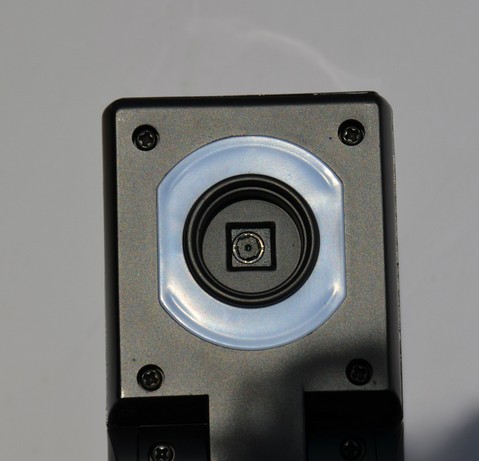

2.The lens with microphones. So it can extend your voices. It can shoot 3D file or pictures according to subjects height. It also can be connected with microscope.

3.LED lighting, three model adjustment.

4.Real 5 Mega CMOS. Fast shooting with high definition.

5. Dual cool holes design. It will stay cool even long time usage.

6. Buttons with shock-absorbing and rub design. So it will stand on the desk stably.

7.With safety lock.

Product Specification
Shape	Stand and foldable Shape
Image Sensor	CMOS 1/3'' Color 5.0 mega pixel imaging system
Applicable to	Documents, books, 3D objects, pictures and so on
Shooting Size	Bigger than A3
Scan Speed	About 1 seconds
Picture Resolution	2592×1944、1600X1200、1280X1024、640X480 、320x240
Picture colors	24 byte
Picture Format	JPEG、TIF、PDF
Port	USB 2.0，No need extensional power supply
Picture control	Brightness adjustment, Exposure length adjustment, sharpness adjustment, Color adjustment, Gain control
Light	Sunlight，LED Light（three levels adjustable）
Open size	300 mm X 95 mm X 85mm
Close Size	300 mm X 95 mm X330mm
Weight	About 1KG
Power Consumption	< 5W
Other Features	POWER，LED brightness+/-、Pictures rotate
System requirement:	P4 CPU or above，512M ROM above,WindowsXP/Vista/Windows 7/8/10/ Linux/Mac With USB2.0 adapter, MS Direct X9.0 or above
