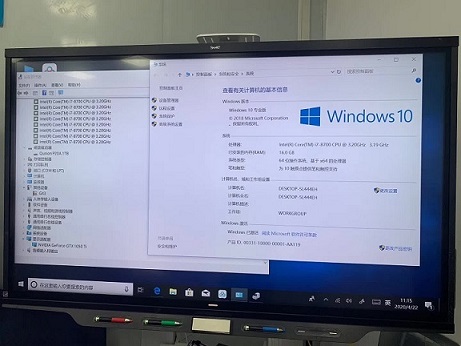

The Open Pluggable Specification (OPS) is the industry standard for connecting computer devices to large flat panel/interactive displays via a single universal 80 Pin JAE internal slot. With no need for any cables, the OPS System simply plugs into a single slot in the back of any OPS compatible display (both touch and non-touch), instantly converting your big screen into a giant all-in-one Windows PC.

Opc PC module for Interactive Flat Panel

Applicable panel Brands: Promethean Activpanel, Smart Boards, HITACHI, CTOUCH, SHARP, BENQ, Geneeworld, Newline interative, TEAMBOARD, TRIUMPH BOARD.

Processor	CPU	Intel Core i3/i5/i7 7^th Generation CPU
	Chipset	SOC
	BIOS	AMI 32Mbit
RAM		4GB SO-DIMM DDR4L 2133 MHz memory/8GB&16GB optional
ROM	SATA Port	mSATA SSD 128G /256G, 512G and 1TB SSD optional
Display	Chipset	Intel® HD520 Graphics
NET	Chipset	Realtek Gigabit Ethernet
NET	WIFI	1 x WIFI Module support IEEE 802.11g /n/ac
I/O PUT	USB 3.0	4x USB 3.0
	USB 2.0	2x USB 2.0
	Power Button	1x Power Button
	DC port	1x DC port
	OPS Port	1x OPS port (80 pins)
	RJ 45	1x RJ 45
	VGA	1xVGA
	HDMI	1xHDMI
	Audio	1 × LINE-OUT & MIC-IN, integrated 6 channels ALC662 audio card chip
POWER	Input	DC 12-19V
POWER	Power Consumption	30W
SIZE	physical Size	180mm (L) x 119mm (W) x 30mm (H)
Working environment	Temperature	Working:0°C ~50°C storage: -20~70°C
Working environment	Humidity	5%~90%
Operation System	Version	Windows xp/Windows 7 / windows8 / Windows 10/Linux
