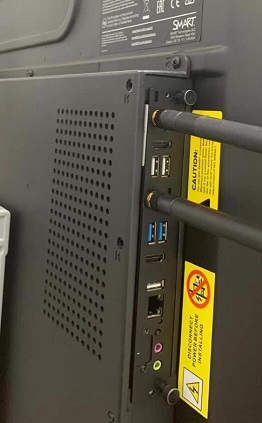

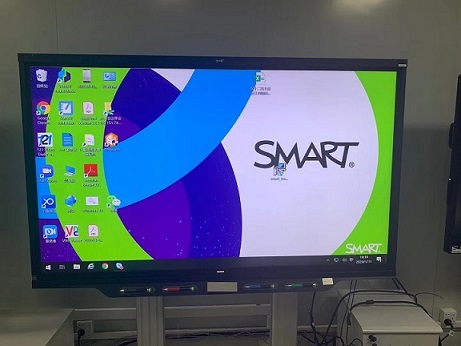

The Open Pluggable Specification (OPS) is the industry standard for connecting computer devices to large flat panel/interactive displays via a single universal 80 Pin JAE internal slot. With no need for any cables, the OPS System simply plugs into a single slot in the back of any OPS compatible display (both touch and non-touch), instantly converting your big screen into a giant all-in-one Windows PC.

Opc PC module for Interactive Flat Panel

Applicable panel Brands: Promethean Activpanel, Smart Boards, HITACHI, CTOUCH, SHARP, BENQ, Geneeworld, Newline interative, TEAMBOARD, TRIUMPH BOARD.

Processor	CPU	Intel Core i3/i5/i7 4^th Generation CPU
	Chipset	Intel® H86
	BIOS	AMI 32Mbit
RAM		4GB SO-DIMM DDR3 1333 MHz memory/8G optional
ROM	SATA Port	128/256G SSD
ROM	MINI PCIE	1xMini PCIE
Display	Chipset	CPU HD Graphics
	Output	VGA+HDMI, single Display/ Dual Display
		1 × VGA (resolution 1920×1080 maximum)
		1 ×HDMI (resolution 3840x2160 maximum)
		1xDP
NET	Chipset	1 × RTL8111E 10/100/1000M (RJ45 LAN)
NET	WIFI	1 x WIFI Module support 802.11b/g/n (Mini PCIE half card)
I/O PUT	USB 3.0	4x USB 3.0
	USB 2.0	2x USB 2.0
	Power Button	1x Power Button
	Reset	1x Reset Button
	OPS Port	1x OPS port (80 pins)
	LED indicator	1x power LED, 1x RAM LED
	DC Jack	1x DC jack
	Audio	1 × LINE-OUT & MIC-IN, integrated 6 channels ALC662 audio card chip
POWER	Input	DC 12-19V
POWER	Power Consumption	60W
SIZE	physical Size	180mm (L) x 119mm (W) x 30mm (H)
Working environment	Temperature	Working:0°C ~50°C storage: -20~70°C
Working environment	Humidity	5%~90%
Operation System	Version	Windows xp/Windows 7 / windows8 / Windows 10/Linux
