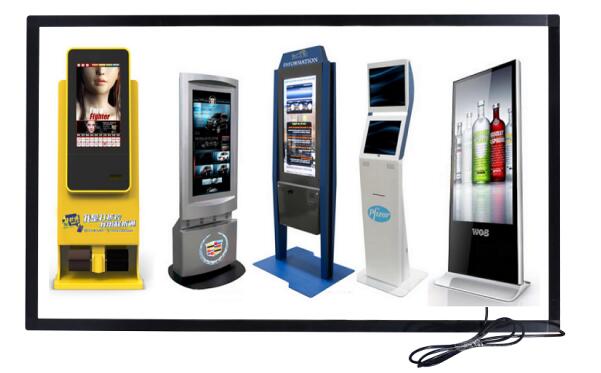

84 Inch touch frame overlay
10 points touch, plug and play
Induction Type Infrared
Touch points – 10 simultaneous points touch
Writing Type finger or pen
Positioning Accuracy ≤0.1mm
Touch Preciseness 32768*32768
Cursor Speed ≥200dots/second
Transferring Rate 12m/s
Scanning Rate first point 25ms consecutive points 8ms
Consumption Current <1W, USB 5V voltage, current ≤ 100mA
Operating Voltage DC 4.6V ~ DC 5V
Working Environment
1.Operating Temperature:-10 °C- 45 °C
2.Operating Humidity:20% - 85%
3.Altitude:3,000m or below
4.Under daylight, indoor & outdoor environment
Touch Spot Life Span Over 60,000,000 times single spot touch
Frame Type – Aluminum Standard/ABS optional
Frame Color- Black
Device driver version- DL-USB
Data Port - USB
Scale- 16:9
Service Life - >10 years
Scanning form -Auto
Warranty: 3 years
Application:TV/LED FLAT PANELS/INTERACTIVE KIOSK
