17 inch touch screen

Product Introduction

1. Super narrow design, frame width 10.6mm, thickness 5.8mm, work with all kinds of ATM and small size LED/LCD screen,

2. Aluminum frame with oxidation processing

3. Dual touch, no need drivers, plug and play；

4. High precision/ resolutions.

5. Work perfectly under the sunlight

6. Equipped with 2.5mm tempered glass, work perfectly under the harsh environment.

7. Work with system Windows7/ 8/10、Windows XP、Linux、Vista、Android

Specification：

Size range	15'(4:3/16:9)', 15.6'', 17''(4:3), 18.5''(16:9), 19''(5:4/16:10), 21.5''(16:9)
Touch Technology	Infrared
Touch point	Dual Touch
Touch medium	the finger (wear gloves, finger), touch pen or other opaque media
Minimum touch object	≥5 mm
Touch precision	2 mm
Touch times	Over 60,000,000 times single spot touch
Touch Resolution	32768x32768
Transmittance	AR glass 92%, tempered glass 90%, up to 100% of the maximum (no glass)
The response speed	less than 5 ms
Drive mode	without drive, plug and play
Interface mode	USB2.0
Operating voltage	USB 5V DC (4.75V DC ~ 5.25V DC)
Working power	less than 1 W
Frame material	aluminum alloy surface oxidation
Frame color	black

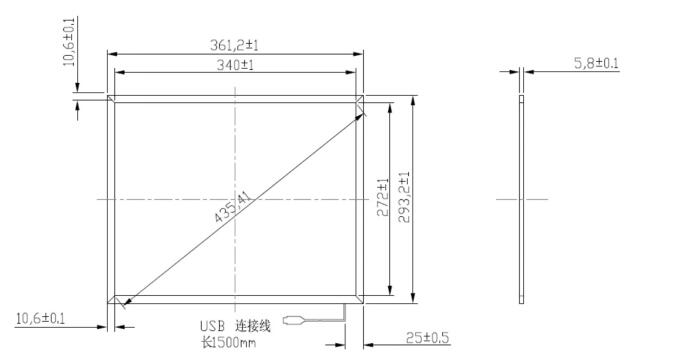

Frame Width	10.6mm
Frame thickness	5.8mm
Glass	2.5mm tempered glass
Working temperature	-10 ~ 60 ℃
Working humidity	10% ~ 85%RH, no condensation
Application	ATM machine, Information Kiosk
