Processor |
CPU |
Intel Core i3/i5/i7 7th Generation CPU |
|
Chipset |
SOC |
|
|
BIOS |
AMI 32Mbit |
|
|
RAM |
|
4GB SO-DIMM DDR4L 2133 MHz memory/8GB&16GB optional |
|
ROM |
SATA Port |
mSATA SSD 128G /256G, 512G and 1TB SSD optional |
|
Display |
Chipset |
Intel® HD520 Graphics |
|
NET |
Chipset |
Realtek Gigabit Ethernet |
|
WIFI |
1 x WIFI Module support IEEE 802.11g /n/ac |
|
|

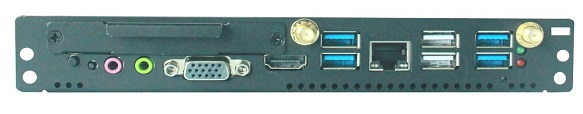

I/O PUT |
USB 3.0 |
4x USB 3.0 |
|
USB 2.0 |
2x USB 2.0 |
|
|
Power Button |
1x Power Button |
|
|
DC port |
1x DC port |
|
|
OPS Port |
1x OPS port (80 pins) |
|
|
RJ 45 |
1x RJ 45 |
|
|
VGA |
1xVGA |
|
|
HDMI |
1xHDMI |
|
|
Audio |
1 × LINE-OUT & MIC-IN, integrated 6 channels ALC662 audio card chip |
|
|
POWER |
Input |
DC 12-19V |
|
Power Consumption |
30W |
|
|
SIZE |
physical Size |
180mm (L) x 119mm (W) x 30mm (H) |
|
Working environment |
Temperature |
Working:0°C ~50°C storage: -20~70°C |
|
Humidity |
5%~90% |
|
|
Operation System |
Version |
Windows xp/Windows 7 / windows8 / Windows 10/Linux |
