Main components |
Technology |
DLP |
|
Projection System |
0.55’DMD |
|
|
Projector Lens |
aperture2.6 |
|
|
lamp |
240W OSRAM Unishape |
|
|
Lamp Life |
5000(standard),6000hrs(power saving) |
|
|
resolution |
standard |
XGA(1024x768) Support 1080P |
|
compatible |
VGA\SVGA\XGA\SXGA\SXGA+\WXGA\UXGA |
|
|
Brightness |
3600 ANSI lumen ,6000 Lumens(ISO21118) |
|
|
Contrast Ratio |
7000:1 (full on/full off),dynamic 13000:1 |
|
|
|
95% |
|
|
Colorwheel |
6segment |
|
|
Colors |
10.7 billion |
|
|
weight |
2.6kg |
|
|
dimension |
284.0mm x 234.3 mmx 81.5 mm |
|
|
projection method |
Front, Rear, Ceiling Mount, Table Top; Projection Image support |
|
|
projection size |
30”-300” |
|
|
Aspect ratio |
4:3/ 16:9 |
|
|
keystone correction |
vertical v-correction±40° |
|
|
scanning frequency |
horizontal:31 ~ 100 KHz; vertical:50 ~ 120 Hz |
|
|
video format |
NTSC, NTSC 4.43 |
|
|
PAL, PAL-N, PAL M |
||
|
SECAM,HDTV (480i/p, 576p, 720p, 1080i/p), |
||
|
interfaces |
input |
2 x VGA(15-pin D-Sub),1x Composite Video (RCA jack), 1x S-Video (Mini-DIN 4 pin), 1x Audio(3.5 mm), HDMI x 1 |
|
output |
1x VGA |
|
|
1x Audio(3.5 mm) |
||
|
controlling |
1xMini USB ; 1x RS-232 |
|
|

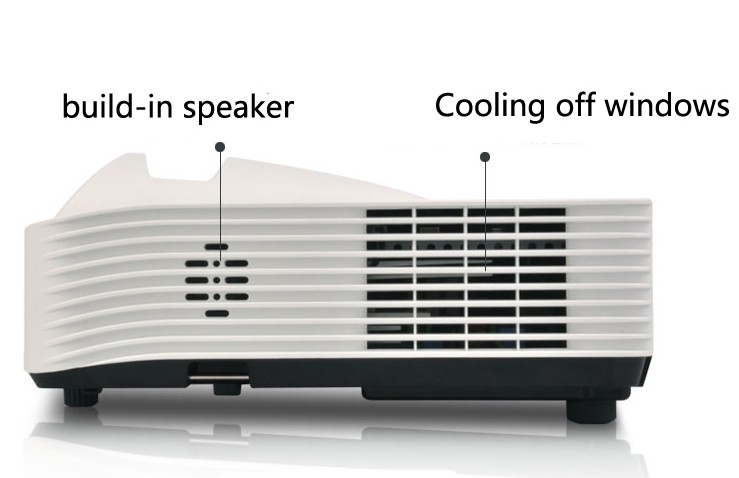

speaker |
embedded2Wspeaker |
|
|
noise |
standard mode 32dB,economic mode30dB |
|
|
power supply |
AC 100-240 V, 50 - 60 Hz, 3.2A |
|
|
power consumption |
320W(maximum) |
|
|
ambient temprature |
operation:temprature0°C-40°C humidity10%-80% |
|
|
storage:temprature-20°C-60°C humidity 30%-85% |
||
|
Gross weight |
3KG |
|
|
carton size(WxDxH) |
330mm x 140mm x 330mm |
|
