The Open Pluggable Specification (OPS) is the industry standard for connecting computer devices to large flat panel/interactive displays via a single univThe Open Pluggable Specification (OPS) is the industry standard for connecting computer devices to large flat panel/interactive displays via a single universal 80 Pin JAE internal slot. With no need for any cables, the OPS System simply plugs into a single slot in the back of any OPS compatible display (both touch and non-touch), instantly converting your big screen into a giant all-in-one Windows PC.

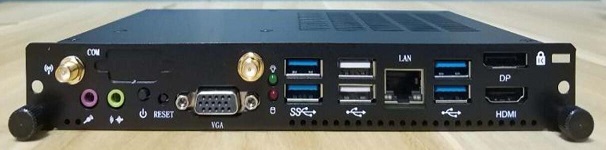

Opc PC module for Interactive Flat Panel

Applicable panel Brands: Promethean Activpanel, Smart Boards, HITACHI, CTOUCH, SHARP, BENQ, Geneeworld, Newline interative, TEAMBOARD, TRIUMPH BOARD.

Processor

CPU

Intel Core i3/i5/i7 4th Generation CPU

Chipset

Intel® H86

BIOS

AMI 32Mbit

RAM



4GB SO-DIMM DDR3 1333 MHz memory/8G optional

ROM

SATA Port

128/256G SSD

MINI PCIE

1xMini PCIE

Display

Chipset

CPU HD Graphics

Output

VGA+HDMI, single Display/ Dual Display

1 × VGA (resolution 1920×1080 maximum)

1 ×HDMI  (resolution 3840x2160 maximum)

1xDP

NET

Chipset

1 × RTL8111E 10/100/1000M (RJ45 LAN)

WIFI

1 x WIFI Module support 802.11b/g/n (Mini PCIE half card)

I/O PUT

USB 3.0

4x USB 3.0

USB 2.0

2x USB 2.0

Power Button

1x Power Button

Reset

1x Reset Button

OPS Port

1x OPS port (80 pins)

LED indicator

1x power LED, 1x RAM LED

DC Jack

1x DC jack

Audio

1 × LINE-OUT & MIC-IN, integrated 6 channels ALC662 audio card chip

POWER

Input

DC 12-19V

Power Consumption

60W

SIZE

physical Size

180mm (L) x 119mm (W) x 30mm (H)

Working environment

Temperature

Working:0°C ~50°C  storage: -20~70°C

Humidity

5%~90%

Operation System

Version

Windows xp/Windows 7 / windows8 / Windows 10/Linux

ersal 80 Pin JAE internal slot. With no need for any cables, the OPS System simply plugs into a single slot in the back of any OPS compatible display (both touch and non-touch), instantly converting your big screen into a giant all-in-one Windows PC.



Opc PC module for Interactive Flat Panel

Applicable panel Brands: Promethean Activpanel, Smart Boards, HITACHI, CTOUCH, SHARP, BENQ, Geneeworld, Newline interative, TEAMBOARD, TRIUMPH BOARD.

Processor

CPU

Intel Core i3/i5/i7 4th Generation CPU

Chipset

Intel® H86

BIOS

AMI 32Mbit

RAM



4GB SO-DIMM DDR3 1333 MHz memory/8G optional

ROM

SATA Port

128/256G SSD

MINI PCIE

1xMini PCIE

Display

Chipset

CPU HD Graphics

Output

VGA+HDMI, single Display/ Dual Display

1 × VGA (resolution 1920×1080 maximum)

1 ×HDMI  (resolution 3840x2160 maximum)

1xDP

NET

Chipset

1 × RTL8111E 10/100/1000M (RJ45 LAN)

WIFI

1 x WIFI Module support 802.11b/g/n (Mini PCIE half card)

I/O PUT

USB 3.0

4x USB 3.0

USB 2.0

2x USB 2.0

Power Button

1x Power Button

Reset

1x Reset Button

OPS Port

1x OPS port (80 pins)

LED indicator

1x power LED, 1x RAM LED

DC Jack

1x DC jack

Audio

1 × LINE-OUT & MIC-IN, integrated 6 channels ALC662 audio card chip

POWER

Input

DC 12-19V

Power Consumption

60W

SIZE

physical Size

180mm (L) x 119mm (W) x 30mm (H)

Working environment

Temperature

Working:0°C ~50°C  storage: -20~70°C

Humidity

5%~90%

Operation System

Version

Windows xp/Windows 7 / windows8 / Windows 10/Linux
